  5. AT30TS750A Temperature Sensor Breakout Board

AT30TS750A Temperature Sensor Breakout Board

$12.99

3 in stock

Category: Breakout Boards

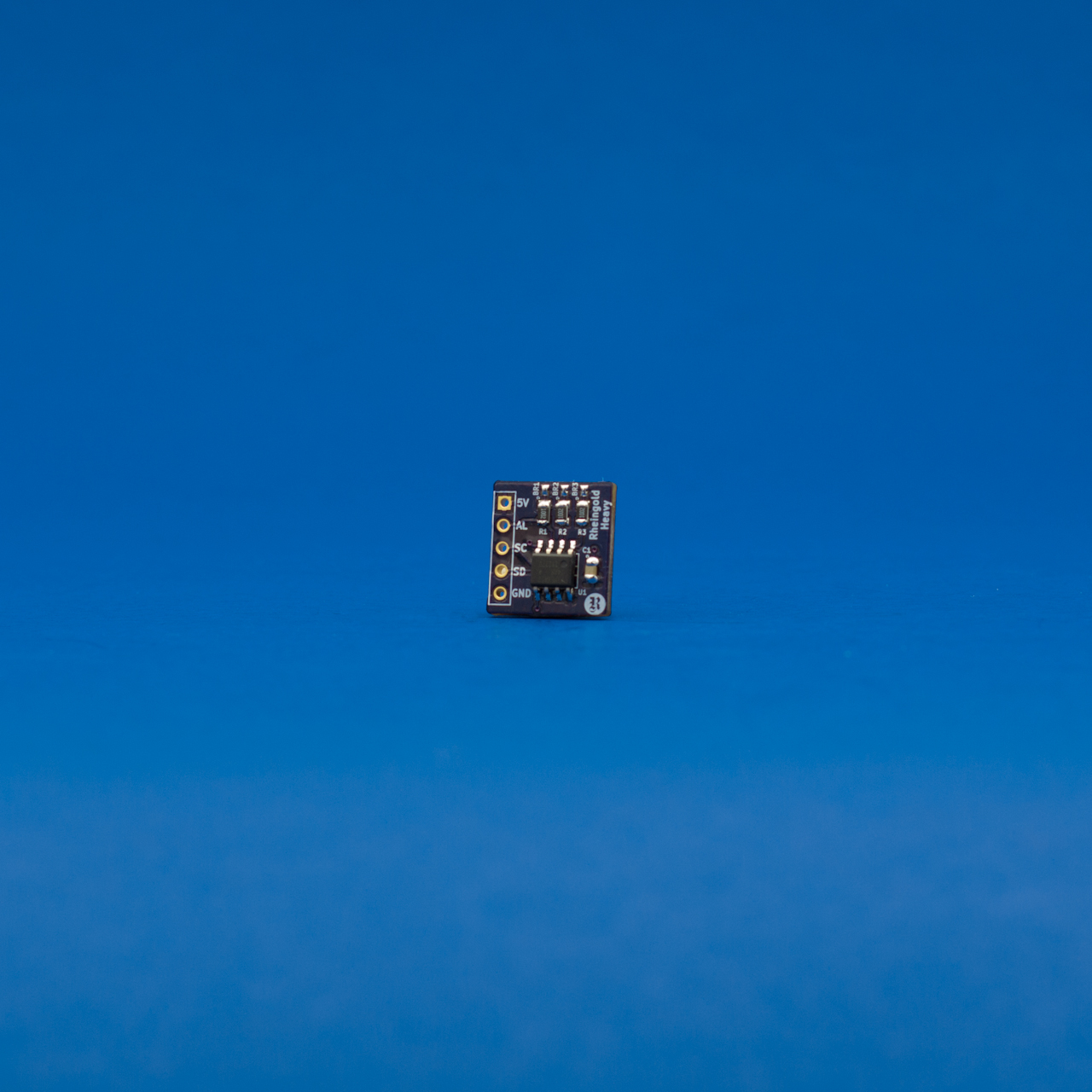

This is a breakout board for the Atmel AT30TS750A Temperature Sensor featured on the I2C and SPI Education Shield and is compatible with all the associated Rheingold Heavy tutorials. The cute little chip on there communicates over I2C making it very easy to manage in your code, and the board has 10K pull up resistors already soldered down, so it’s ready to start working with your favorite microcontroller. If you need a temperature sensor for your IoT project so you can broadcast environmental data to the internet, the AT30TS750A is a great choice because it’s so simple to use, and with our extensive tutorials on the sensor, you’ll get up and running fast.

The AT30TS750A is able to measure temperatures from -55C to +125C and is user configurable through code for 9 to 12 bits of resolution. Temperature alarms are configurable as well, and delivered to your micro via the ALARM pin.

Numerous aspects of data and configuration are stored inside non-volatile registers, so the values will be preserved between power-off/reset events.

The chip is capable of operating with a wide range of voltage sources from 1.7 to 5V, so whatever your favorite microcontroller is, you can hook it up right away.

Datasheet: AT30TS750A

As this chip is I2C, the board ships with pull up resistors in place on the SCL, SDA and AL lines, so that it’s ready to be worked with out of the box. If you want to disconnect the I2C resistors, you only have to use some solder braid and clean the solder bridge pads at the edge of the PCB: BR1, BR2 and BR3. To reconnect, just glob some solder on the bridges to restore the connection to Vcc.
